VM racing: Adjustable linkage

• Made and designed in Italy for supermoto
• Solid 6082 aluminum and hard anodized
• Eccentric Bushings to raise the rear up to 12mm
• Plug and play for KTM Husqvarna GasGas

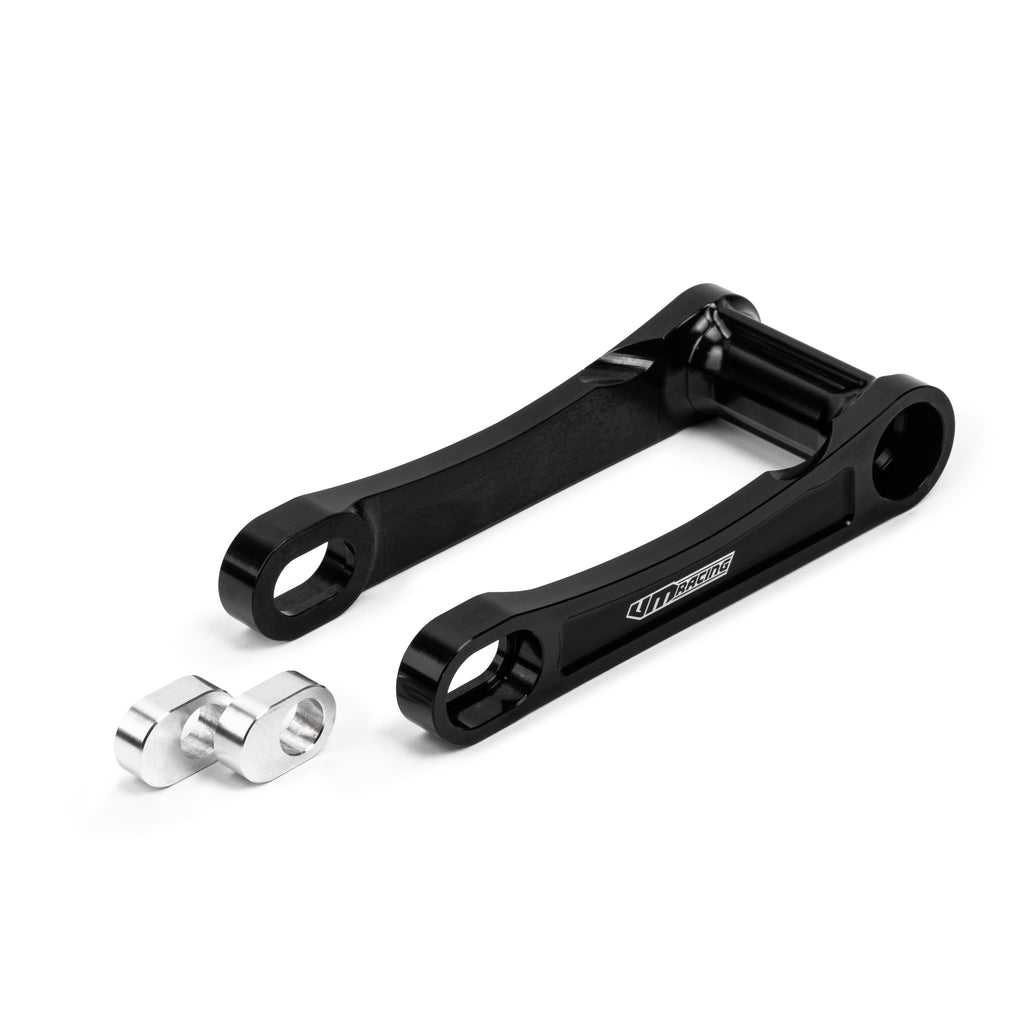

VM racing: Supermoto Adjustable Linkage KTM / HUSQVARNA / GAS GAS
The VM Racing Supermoto adjustable linkage was created with a specific goal: to unify and universalize a key chassis component, eliminating the limitations associated with different years, frames, and configurations.

It is compatible with all KTM/HUSQVARNA/GASGAS models with a linkage system from 2016 to 2026, allowing it to be used on multiple bikes and configurations without having to constantly swap components.

The real advantage is the rear height adjustment, which is essential in supermoto for finding the right balance between entry, traction, and stability.

You can:

• maintain the original height
• raise the rear for a more aggressive ride
• lower the bike as needed

The system uses interchangeable eccentric bushings, which allow for 4 different height configurations (2 positions per bushing), allowing you to precisely find the ideal setup.

Included:

• VM Racing Linkage
• Eccentric Bushings
• Linkage Bearings
• Available Configurations

The linkage is available in two versions:

• Ø15 mm pin (2016-22 / 2025-26)
• Ø17 mm pin (2023-24)

This linkage allows you to:

• mount swingarms from different years
• adapt shock absorbers with different lengths (cross base / supermoto base)
• maintain a single reusable component over time

The bushings can also be purchased separately, so if you change bikes or configurations, you don't have to replace the entire linkage.

Features:

• Compatible with KTM link 2016–2026
• 4-way rear height adjustment
• Interchangeable eccentric bushing system CNC machined from solid steel
• Available in Ø15 mm and Ø17 mm


Perfect to combine with supermoto swingarm
Plug and play including bearing set.
