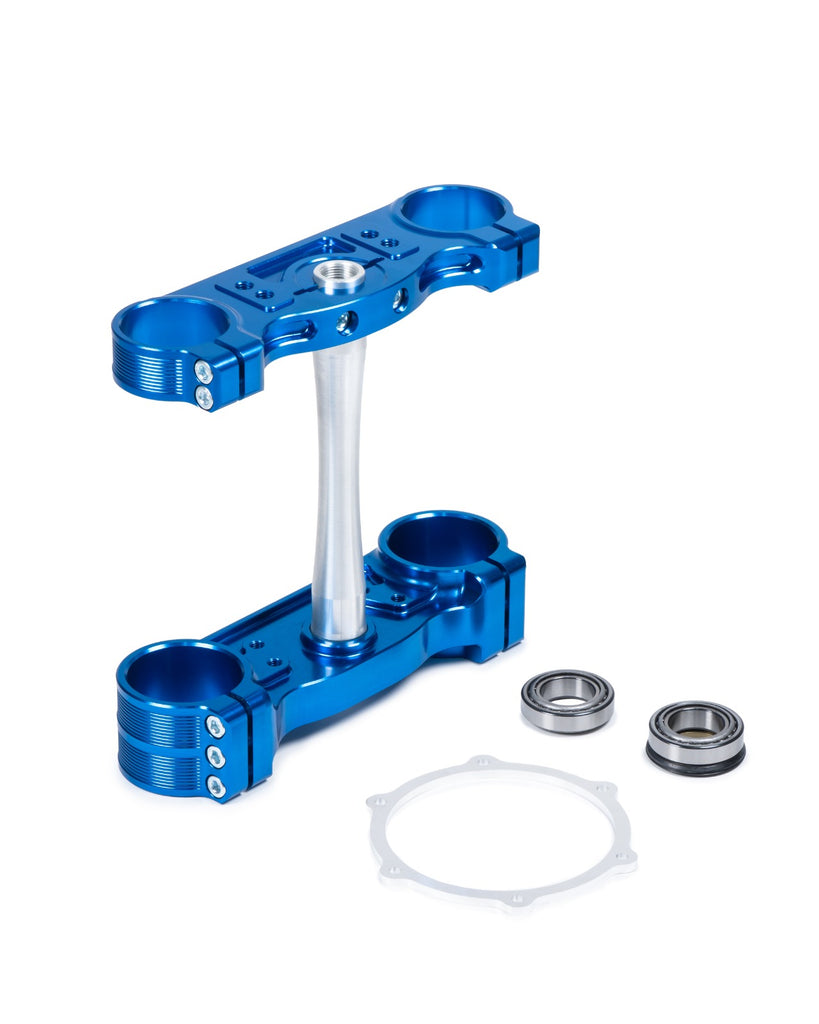

VM racing: SM triple clamp kit YAMAHA / FANTIC
VM racing: SM triple clamp kit YAMAHA / FANTIC: entirely CNC milled from full material and then anodized.
After numerous tests conducted over the years, we have confirmed the ideal offset for supermoto use at 16mm.
Plug and play installation kit for your motorcycle, including a +5mm re-alignment bushing to align the disc and front wheel, steering bearings already installed on the lower plate.
Kit includes:
- Triple clamps
- Steering stem
- Steering stem bearing
- front wheel axle with sliders
- brake disc bolts
- wheel spacer
-
5mm disc spacer
Technical Specifications:
wheelbase: 200mm
offset: 16mm
Compatible with all YZ/YZ-F with an aluminum frame.
THE STOCK FENDER IS NOT COMPATIBLE, BUT THERE ARE NUMEROUS HOLES UNDER THE PLATE FOR MOUNTING RACETECH OR OTHER BRAND FENDERS
IT IS NOT POSSIBLE TO REUSE THE STOCK RISERS OF THE MOTORCYCLES
REUSE THE ORIGINAL STEERING STEM NUT
